Engineered for high load-to-weight efficiency, retail margin optimization, and rapid container turnover during peak global seasonal promotions.
Analyzing retail consumption shifts, supply chain velocity, and commercial procurement strategies during the critical Q4 global retail window.
Black Friday represents the highest inventory turnover window for home improvement retail giants, industrial MRO distributors, and regional automotive chains. Optimizing nesting ratios inside standard 40ft High Cube containers allows brands to slash per-unit freight costs by up to 23%, protecting retail gross margins.
The boundary between industrial workshop storage and advanced DIY garage setups has collapsed. Modern consumers demand commercial-grade features—such as dual ball-bearing slides, keyed interlocking drawer bars, and electrostatic powder coatings—at aggressively accessible holiday promotional price points.
Direct-to-Consumer e-commerce spikes during Cyber Week demand rigorous ISTA-certified drop-tested packaging. OEM tool cabinets require integrated multi-layer honeycomb cardboard, high-density edge EPS guards, and vacuum-sealed films to eliminate zero-mile transit denting and costly product returns.
How Dingda's vertically integrated Zhejiang industrial cluster delivers unmatched lead times, structural precision, and cost leadership.
We source cold-rolled SPCC steel coils directly from domestic primary steel mills. By auditing tensile strength, surface roughness, and yield consistency before slitting, we ensure uniform bending without micro-cracking across heavy sheet metal operations.
Our 40,000 m² smart factory houses automated high-speed laser cutting lines, multi-station CNC punching presses, and robotic spot-welding gantries. Eliminating outsourced sub-assembly translates into a 25–35 day mass production turnaround for high-volume orders.
Our multi-stage pre-treatment tunnels execute degreasing, nano-ceramic silane conversion, and electrostatic dry-powder application. Cured at 180–200°C, the resulting 60–80 µm finish withstands high humidity, brake fluid spills, and mechanical abrasion.
Precision-tailored industrial metal tool storage solutions mapped to specialized geographic trade demands and operational environments.
Heavy-duty deep-drawer combinations equipped with 5-inch polyurethane castors and locking brakes. Designed to store impact wrenches, deep socket organizers, and high-amperage battery charging docks right at the service bay lift.
Reinforced water-resistant, dust-proof SPCC and galvanized steel boxes designed for flatbed utility trucks. Features double-folded weather seals, stainless piano hinges, and heavy gas struts capable of surviving rough outback conditions.
Modular, lockable drawer trolleys engineered to seamlessly integrate with standard European tool storage grids and shadow foam modules. Central safety locks ensure single-drawer opening compliance to prevent workstation tipping accidents.
Benchmark data for commercial procurement teams, engineering evaluators, and retail category managers.
| Performance Metric | Standard Retail Line | Pro-Series Heavy Duty | Custom OEM Enterprise Specification |
|---|---|---|---|
| Base Steel Material | 0.6 mm – 0.8 mm SPCC Cold-Rolled | 0.8 mm – 1.0 mm Reinforced SPCC | Up to 1.2 mm SPCC / Galvanized / Stainless Hybrid |
| Slide Bearing Mechanism | 35 mm Full Extension Ball-Bearing | 45 mm Heavy-Duty Ball-Bearing | 45 mm Soft-Closing / 60 kg Rated Heavy Dual Slides |
| Drawer Dynamic Capacity | 20 – 25 kg per tier | 35 – 45 kg per tier | Up to 60 kg with Reinforced Stiffener Ribs |
| Coating & Surface Shield | Electrostatic Powder Coat (50 µm) | Anti-Fingerprint Powder (70 µm) | Textured Hybrid Powder (80 µm+), Custom RAL Codes |
| Corrosion Resistance | 24-Hour Neutral Salt Spray (ASTM B117) | 48-Hour Neutral Salt Spray | 96-Hour Accelerated Coastal Weathering Test |
| Mobility Configuration | 4" PVC Castors (2 Fixed, 2 Swivel) | 5" Polyurethane Castors w/ Toe Lock | 6" Shock-Absorbing Industrial TPR Silent Wheels |
| Interlocking Security | Standard Cylinder Cam Lock (2 Keys) | Tubular High-Security Lock Mechanism | Digital Keypad / Master Keyed-Alike Multi-Unit Sets |
Anticipating structural engineering shifts, Industry 4.0 integration, and ESG compliance from 2025 to 2030.
Integrating Bluetooth low-energy and RFID locks into commercial roller chests. Fleet managers can monitor tool checkout status, prevent unauthorized tool access in industrial hangars, and log usage metrics automatically via cloud dashboards.
Pairing high-yield cold-rolled steel structural uprights with aeronautical-grade extruded aluminum drawers and composite bumpers. This achieves a 22% weight reduction without lowering vertical stack payload limits.
Adopting VOC-free thermoset powder coatings, using 100% recyclable mono-material steel scrap recovery lines, and integrating solar rooftop energy across all 40,000 m² of stamping, welding, and assembly spaces.
Safeguarding corporate buyers against customs clearance delays, chemical safety liabilities, and structural transit hazards.
All finished powder coatings, plastic drawer trim grips, and internal EVA non-slip foam inserts are rigorously verified to comply with REACH (EC 1907/2006), RoHS 2.0, and California Proposition 65 heavy-metal safety thresholds.
Every dynamic model undergoes ANSI/BIFMA X5.9 and EN 14073 cyclic validation. Our automated test stations complete 50,000 drawer extension cycles under full payload alongside tip-over tilt-angle safety assessments.
Cross-ocean shipments encounter severe humidity swings. We pack units with micro-perforated PE film wraps, desiccants, and sealed perimeter barrier barriers, keeping our corrosion claim rate below 0.05% over two decades.
Direct technical and operational answers to streamline supplier evaluations and initial batch runs.

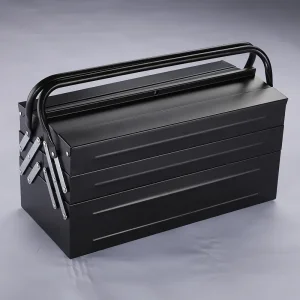

Heavy-gauge cantilever toolboxes, high-capacity roller storage units, and jobsite tool chests engineered for reliable daily use.
